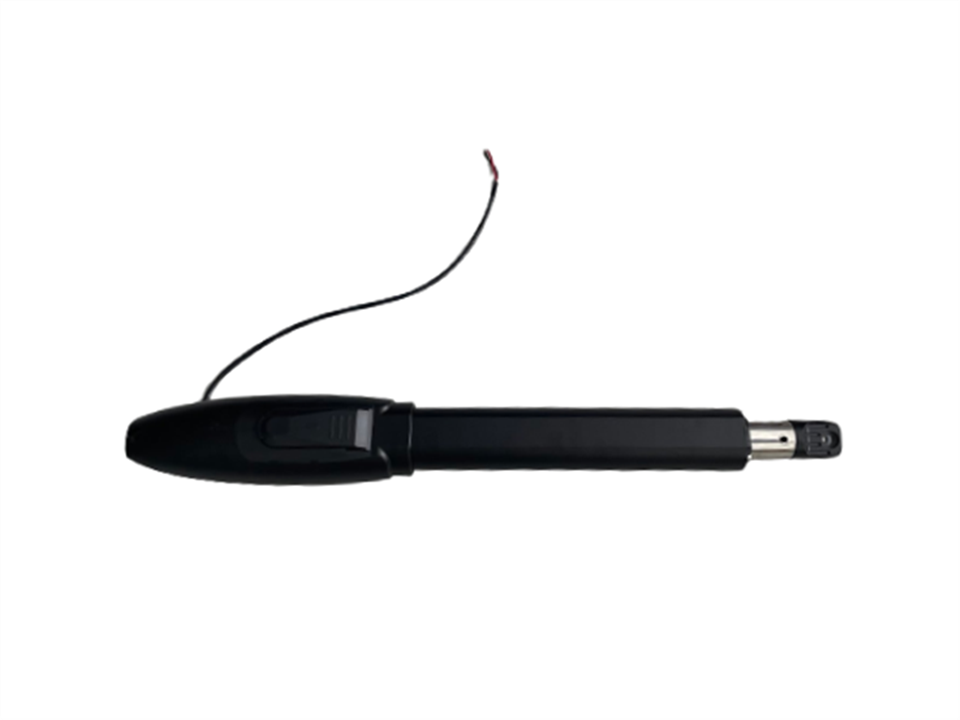

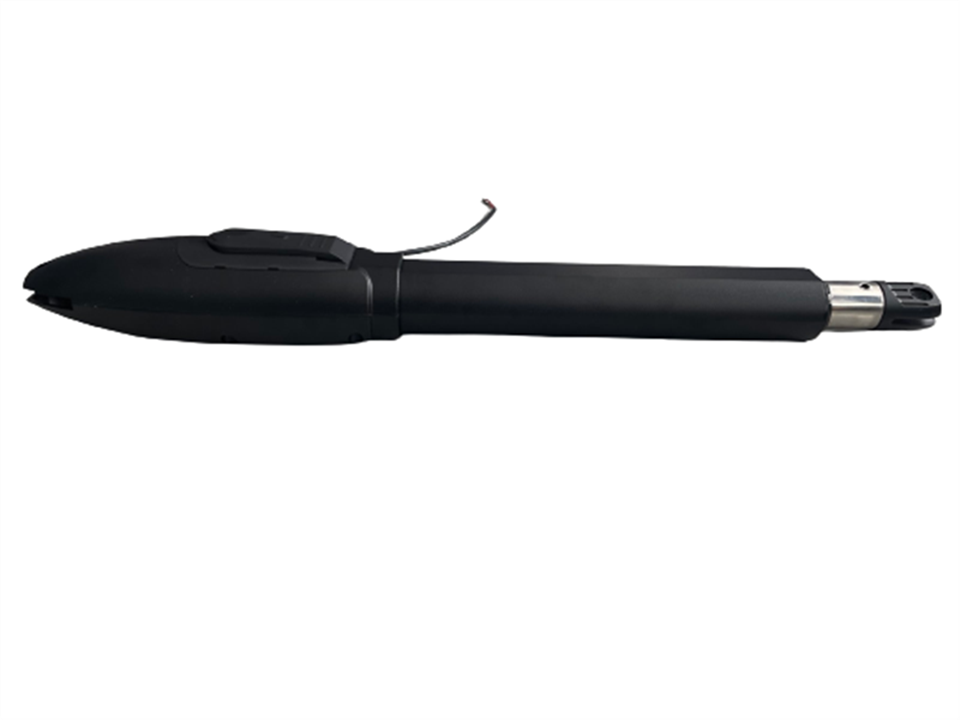

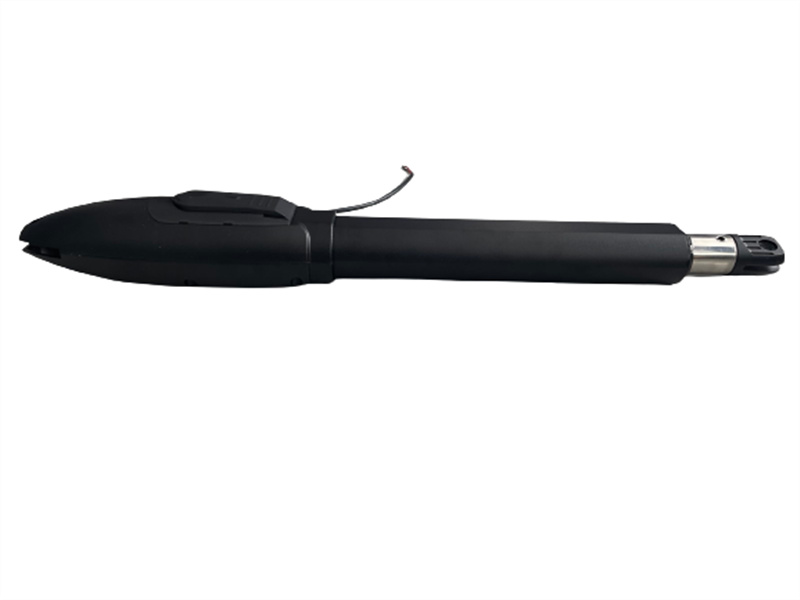

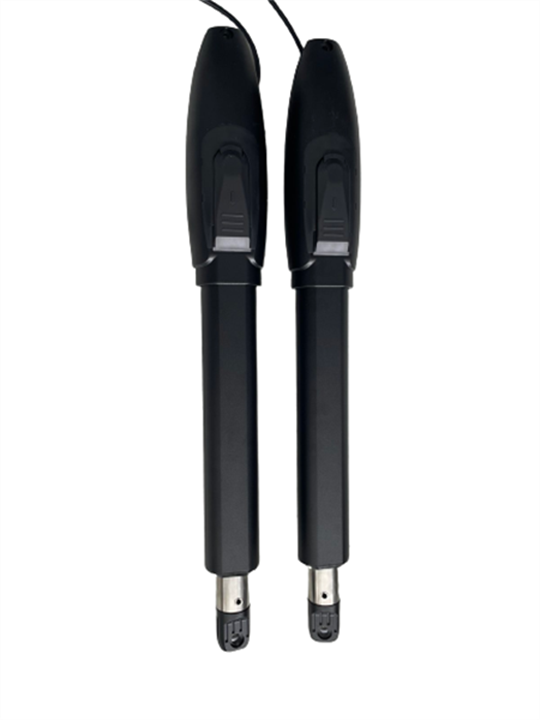

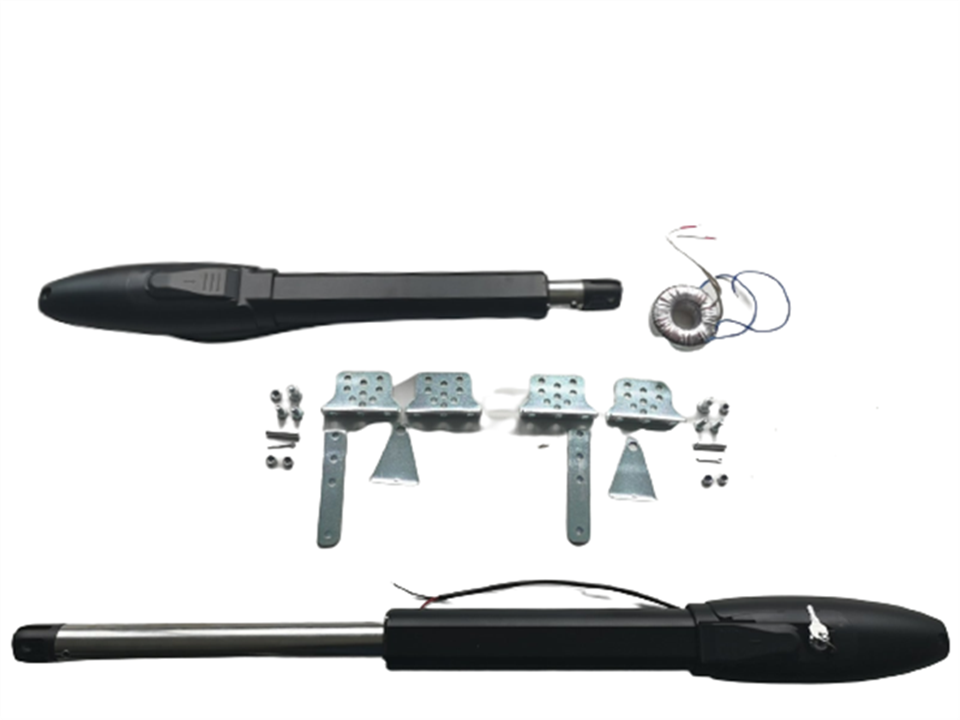

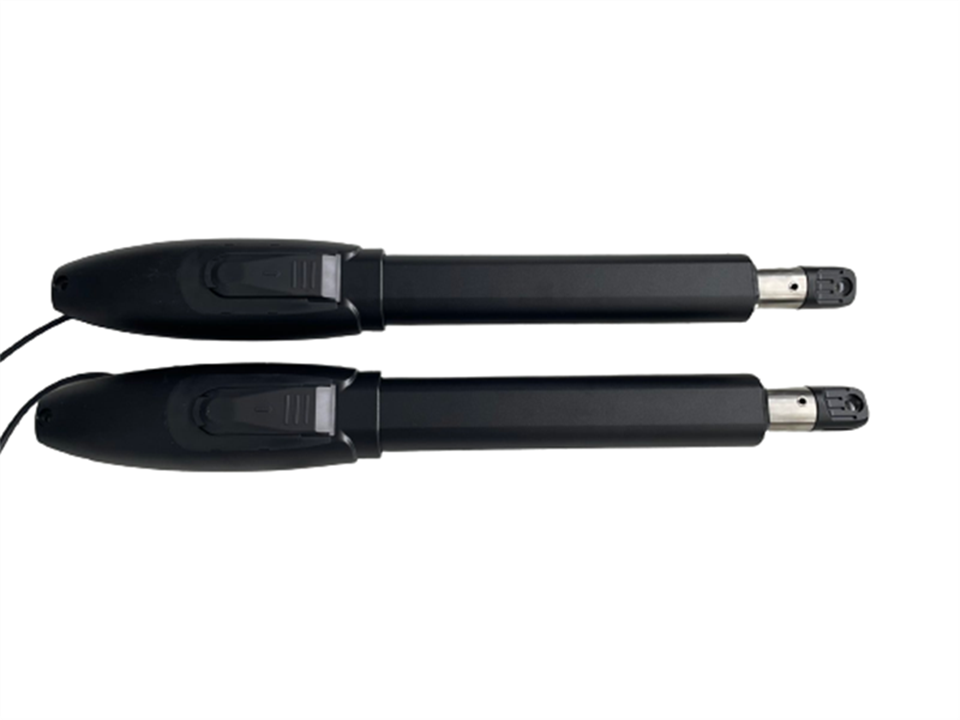

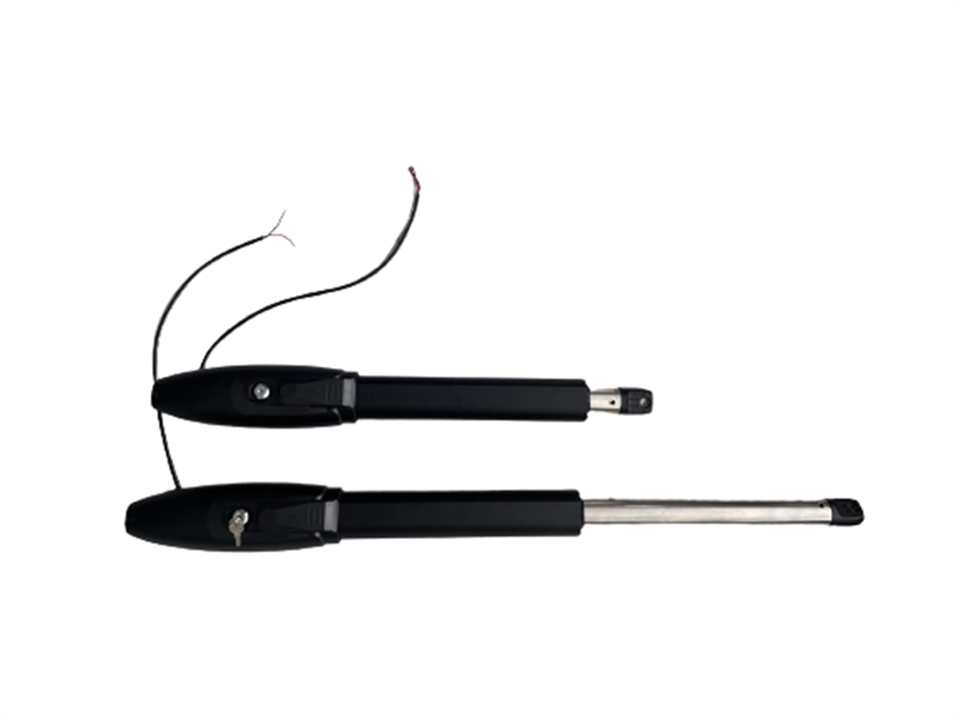

VERO 400 DC

Swing motor for up to 2,50 m door leaf 24VDC

Product description
Technical leaflets

VERO 400 DC is the swing motor for gates up to 2,50 m. It is powerful and easy to install. It is perfect solution to suit most of the residential and commercial swing gates for frequent use. Electromechanical blocked rams, completely in aluminium. In case of power failure, you can unlock the gate through the release key supplied with the motors.

Technical data

Maximum doορ leaf up to 2,50 meters
Motor power 24VDC / 50W
Maximum door weight 300 kg
Maximum thrust 2600N
Protection rating IP44

Main control board functions

Power Supply 24VDC /50 Hz
Max Motor Power 400W
Box Dimensions 25cm X 19.50cm X10cm
Control board Dimensions 13cm X 13.50cm X4.5cm
Fuse 24VDC 10Α
Battery Fuse 10A
Blinker Light power supply 24VDC/500mA
Photocell power supply 24VAC/100 mA
Battery Type 2X12V/ 6Ah
Type of transformer Toroidal 20-24VAC-130VA
Remotes Memory 300 remotes
Temperature -20oC + 60oC

VERO 400 DC TECH.pdf
