6114

WiFi Control Board for 2 motors 230VAC

Product description
Technical leaflets

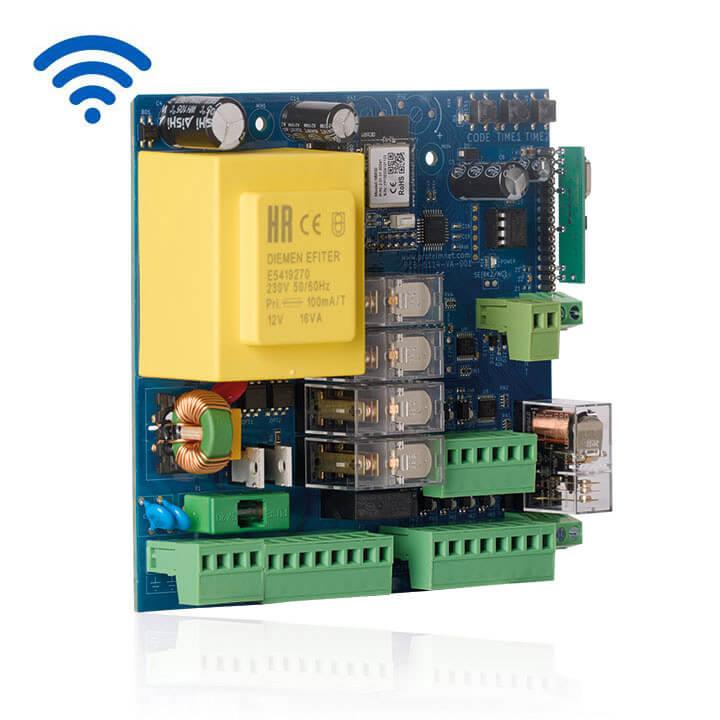

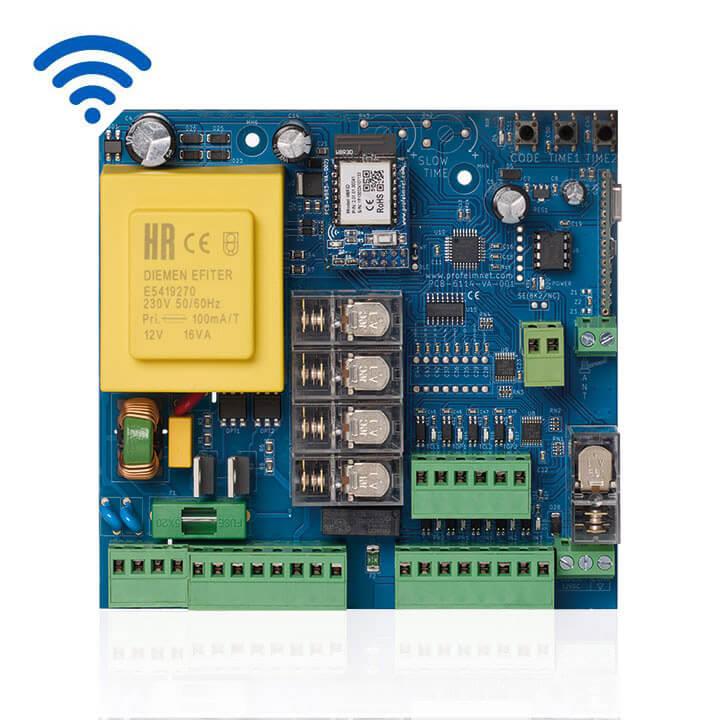

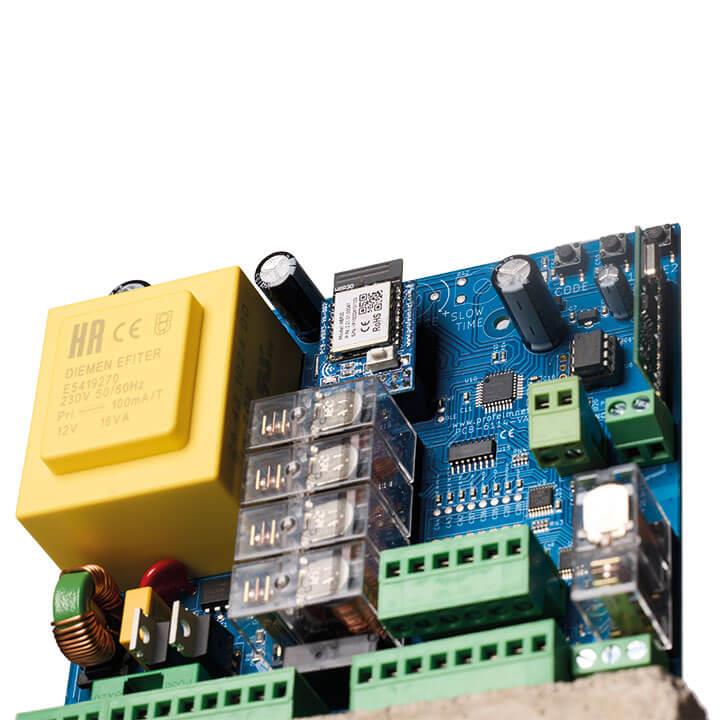

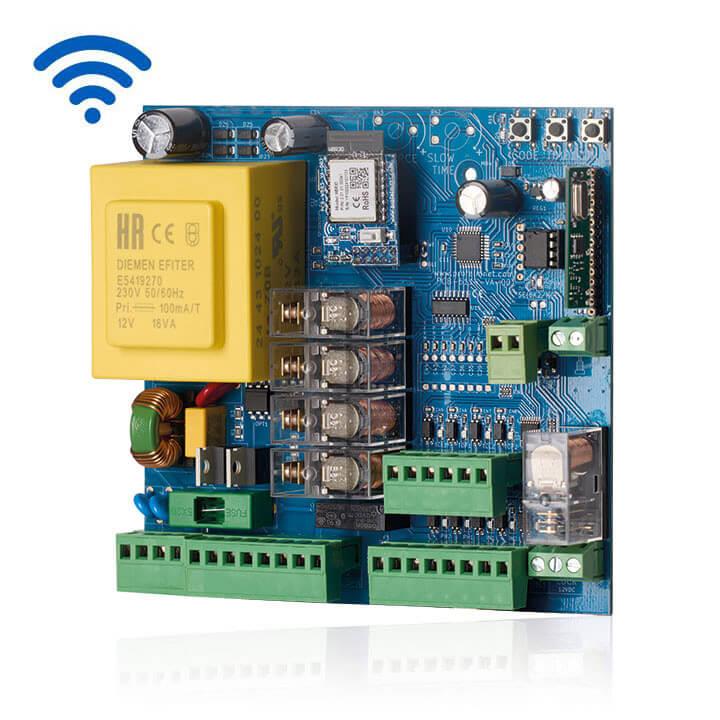

6114 control board is the ideal connectivity solution for double motors that makes access smarter and easier. The user has the possibility to make all the settings of the automation via his mobile phone and also to manage his gate from wherever he is, using the WiFi network.

Technical data

Power Supply 230VAC /50 Hz
Max Motor Power 1400W
Box Dimensions 25cm X 19.5cm X10cm
Control board Dimensions 13cm X 13.5cm X4.5cm
Fuse 230VAC 5Α
Fuse 24VDC 200mA
Blinker Light power supply 230VAC/100W
Photocell power supply 24VDC
Remotes Memory 300 remotes
WiFi protocoll IEEE802,11/2,4GHz/5GHz
Frequency 433,92MHz
Temperature -20oC + 60oC

6114_TECH_EN_V002.pdf
