3650

Control panel for 24VDC motors up to 200 watt

Product description

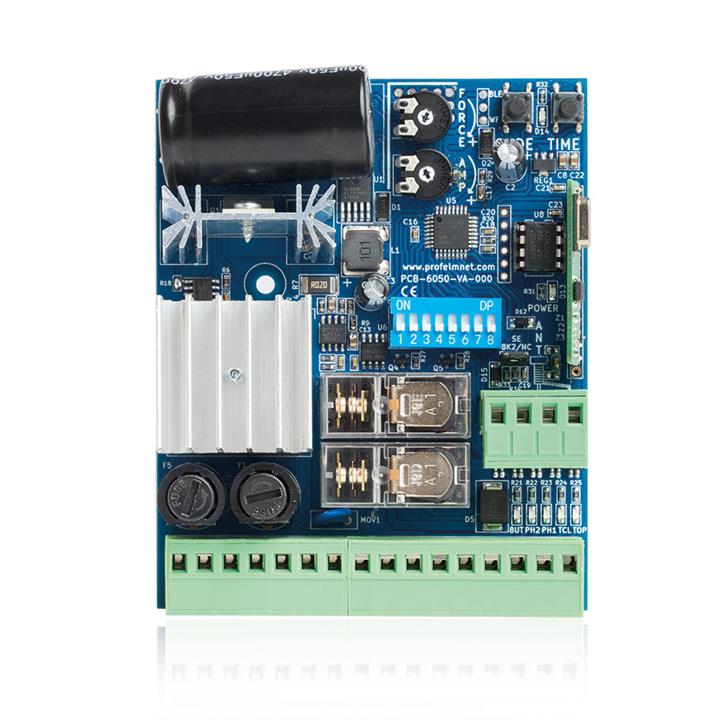

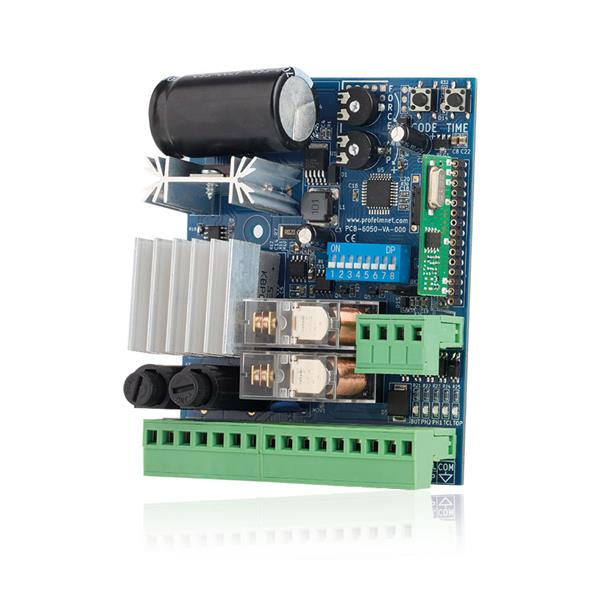

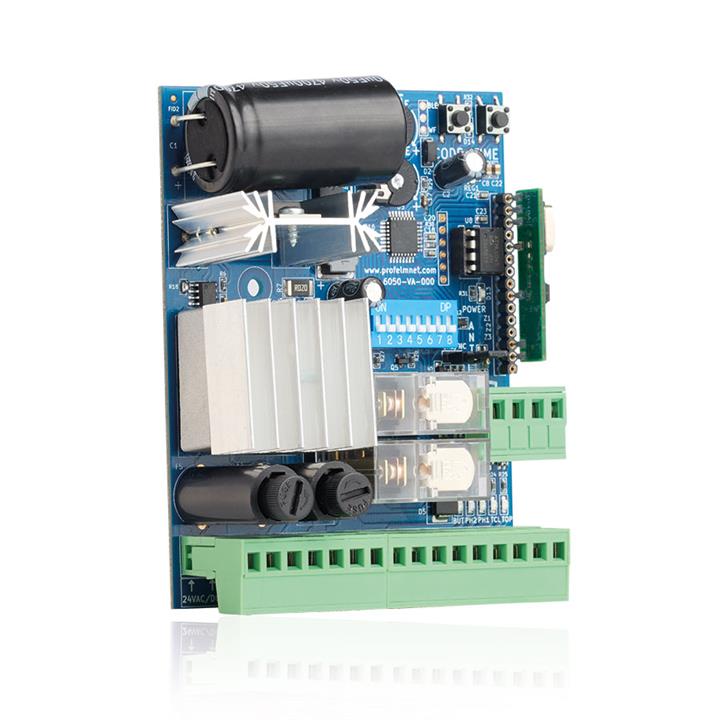

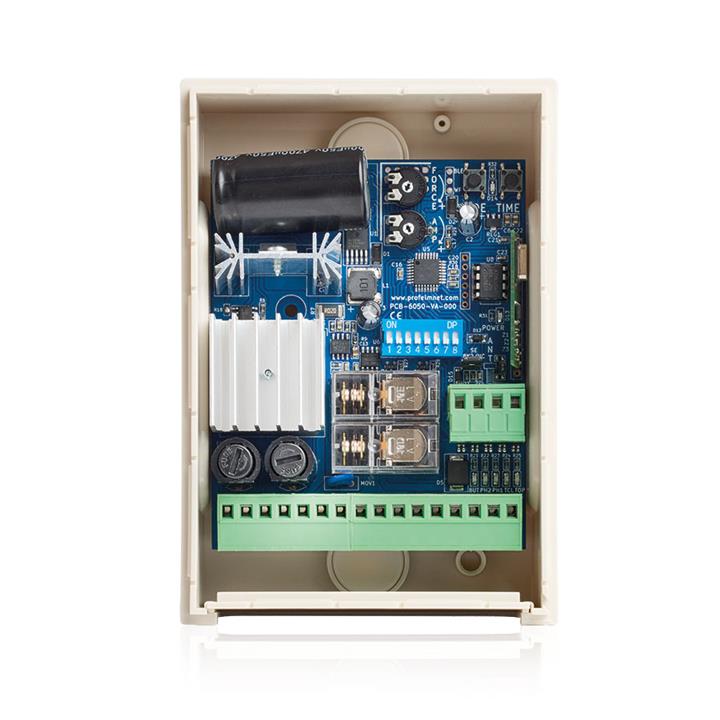

3650 is control panel for 24VDC motors up to 200 watt. Suitable for sliding and swing gates, pergolas and barriers. Advanced in design and specifications, manufactured with state-of the art raw materials. Embedded functions provide a quick and easy installation. 300 transmitters can be stored.

Technical data

Power Supply 24VAC/DC
Motor Power 200W in total
Box Dimensions 9.5cm X 4.5cm X13cm
Board Dimensions 7.5cm X 3cm X10.5cm
Trasnformer Primary Side Fuse 230VAC T1,25A T1,25A
Power Supply Fuse 24VAC/DC F10A
Photocell Fuse F0,63A
Flash Power Supply 24VDC
Photocells Power Supply 24VAC/DC
Board Memory removable up to 300 remotes
Temperature -20oC + 60oC
