6150

WiFi Control Board for 2 motors 24V

Product description

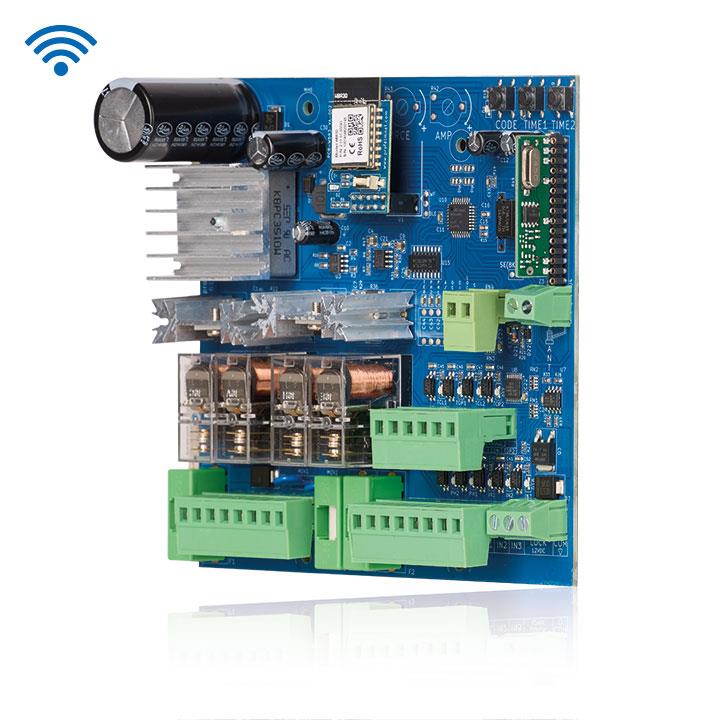

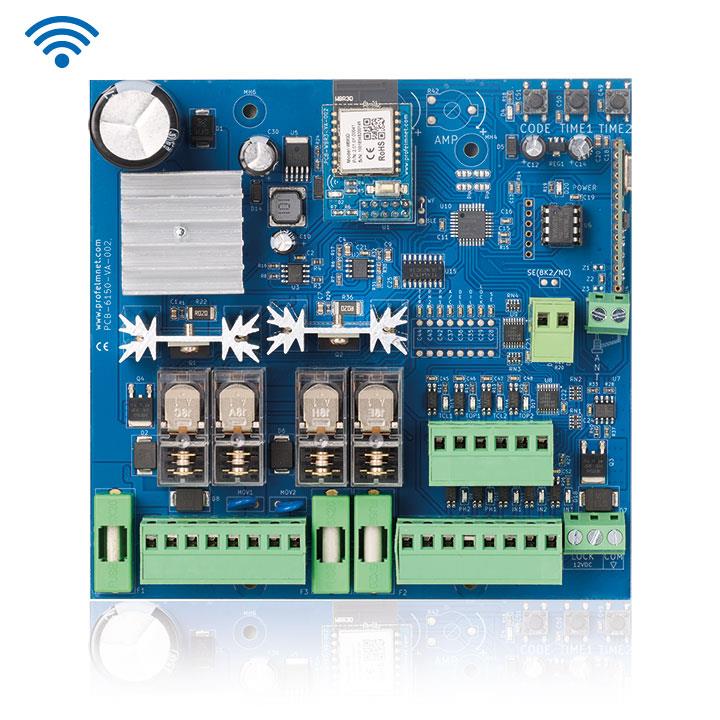

6150 control board is the ideal connectivity solution for double motors 24V that makes access smarter and easier. The user has the possibility to make all the settings of the automation via his mobile phone and also to manage his gate from wherever he is, using the WiFi network, 2.4GHz and 5GHz.

Technical data

Power Supply 24VDC /50 Hz
Max Motor Power 400W

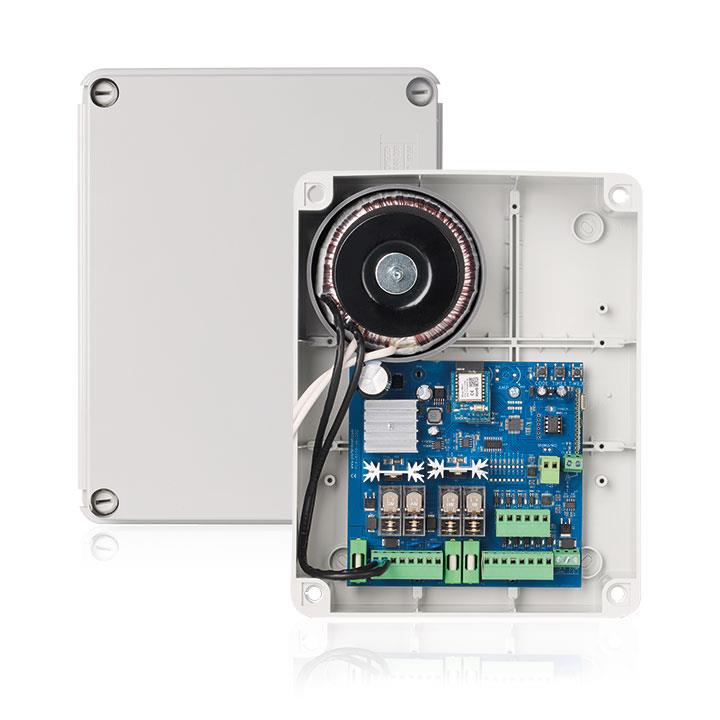

Box Dimensions 25cm X 19.50cm X10cm
Control board Dimensions 13cm X 13.50cm X4.5cm
Fuse 24VDC 10Α
Battery Fuse 10A
Blinker Light power supply 24VDC/500mA
Photocell power supply 24VAC/100 mA
Battery Type 2X12V/ 6Ah
Type of transformer Toroidal 20-24VAC-130VA
Remotes Memory 300 remotes
Temperature -20oC + 60oC
