Motori
Scorrevoli
DIAS 4

DIAS 4

Attuatore 24V per cancelli scorrevoli fino a 450kg, completto di scheda elettronica Profelmnet

Descrizione del prodotto

DIAS 4 è un atttuatore per cancelli scorrevoli 24VDC. Potente, silenzioso, con un design compatto. Ideale per cancelli scorrevoli in ferro battuto o in legno massello, con peso massimo della porta fino a 450 kg. Completto di scheda eletttronica Profelmnet garantisce tutti i requisiti per la sicurezza e per il miglior funzionamento del motore.

Dati tecnici motore

Peso massimo anta 450 kg
Potenza motore 24Vdc / 80 watt
Tempo di apertura 11 metri / minuto
RPM del motore 1600
Grado di protezione IP44
Peso 8 kg

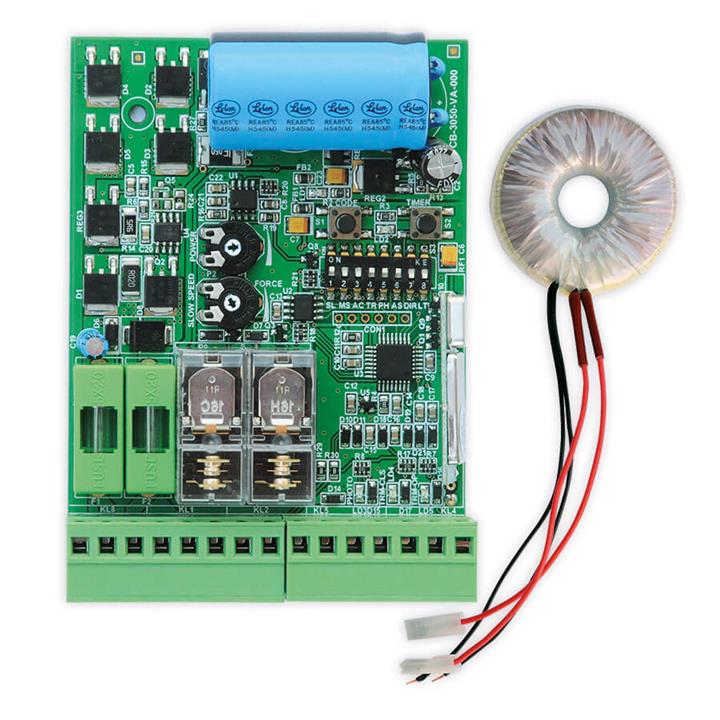

Caratteristiche scheda di comando

LED diversi per indicare le varie funzioni
Ingressi di finecorsa separati per il motore
Nessun relè sfiama per garantire una maggiore durata dei relè
Tasto esterno: NO contatto solo per apertura
Ingresso per fotocellula a 24 VCA / 1,1 VA
Regolazione sensibilità amperometrica
Coppia motore elettronica regolabile
Inversione automatica del motore
Uscita per luce lampeggiante 230VAC / 25W standard con o senza intermittenza
Chiusura automatica regolabile
Tempo di funzionamento del motore programmabile da 1 a 180 secondi
Filtri di protezione
Temperature di lavoro: da -20 °C a + 60 °C
Dimensioni: 111x82x30mm compresa la scatola di alloggiamento in ABS

Accessori

Completa il prodotto con gli accessori per ottenere maggiori funzioni e sicurezza

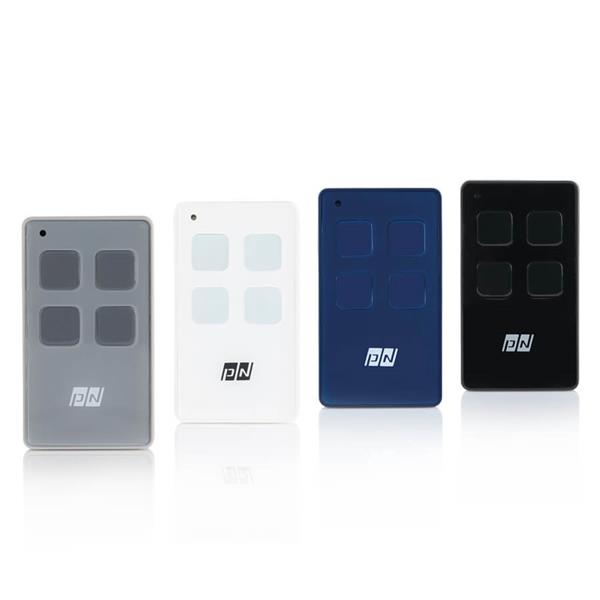

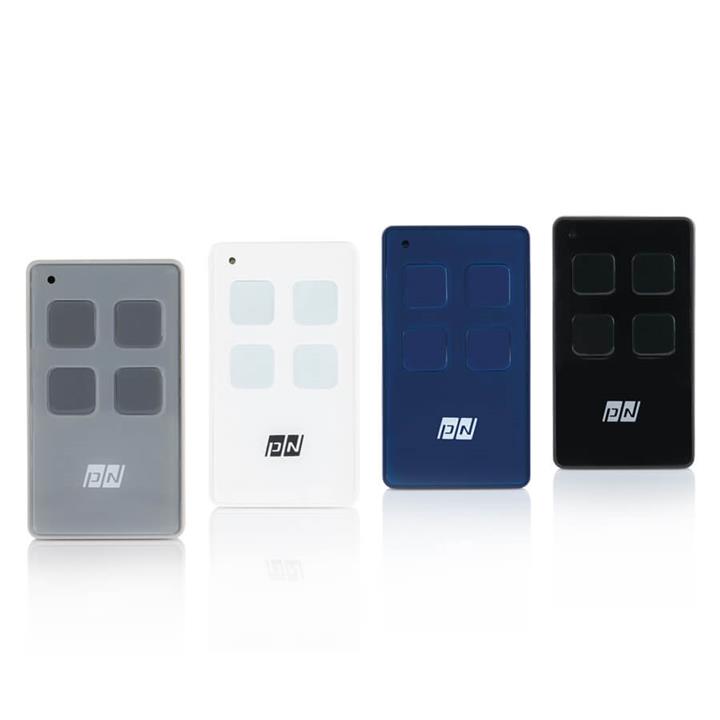

PS-46T

Radiocomando a 4 canali con codice fisso 433.92MHz

Dettagli

RACS

Cremagliere

Dettagli

IR-1000

Fotocellule Reflex fino a 10m

Dettagli

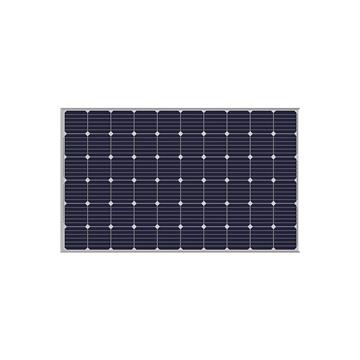

Solar Panel
