Receivers

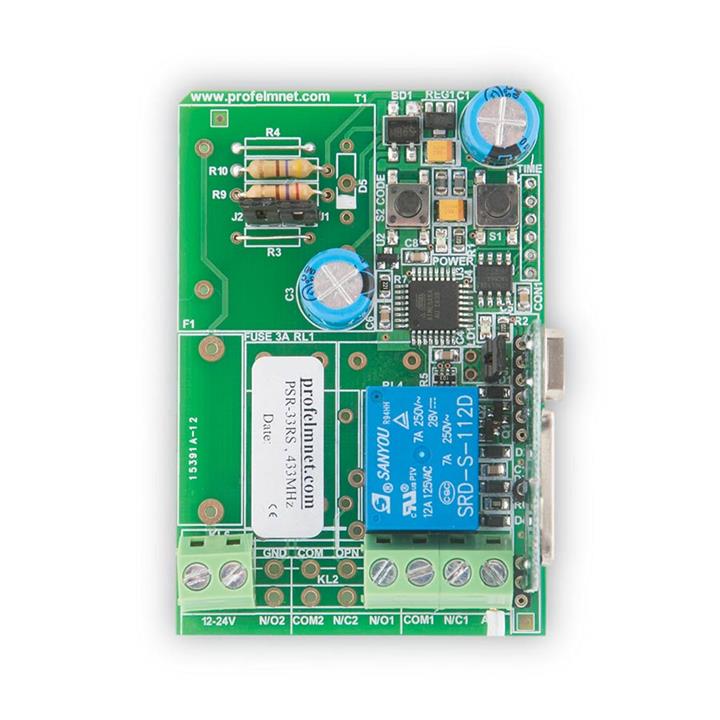

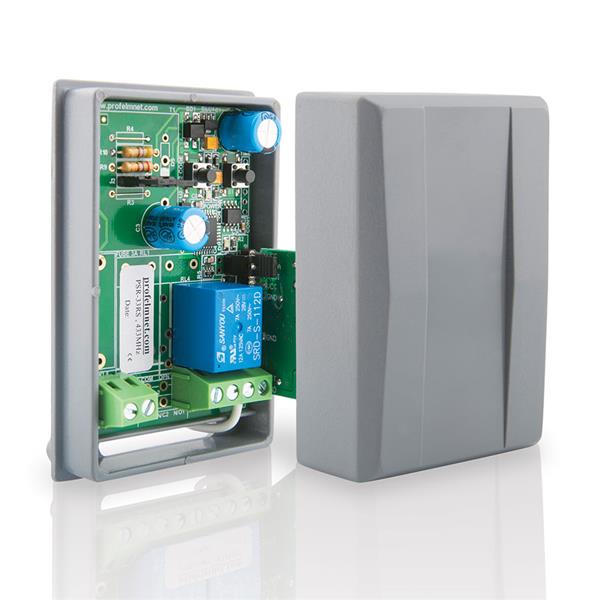

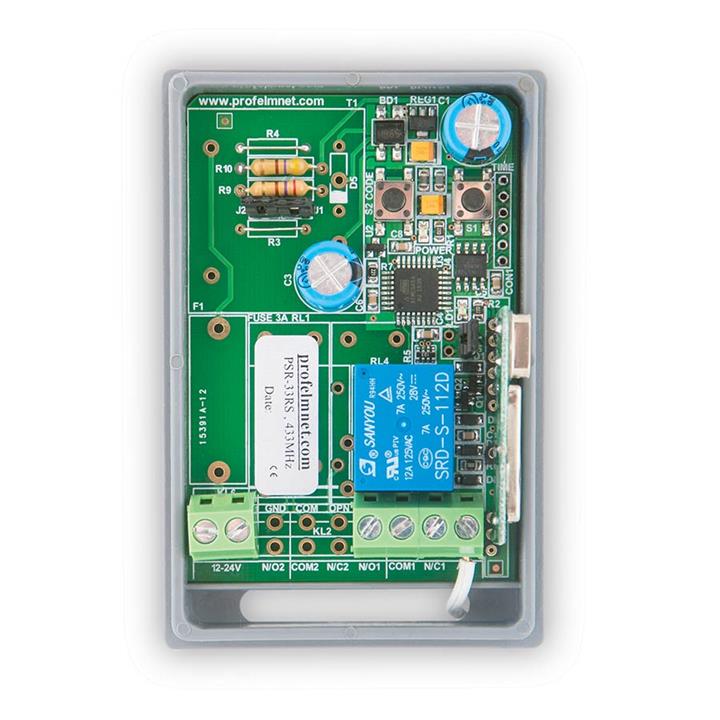

33RS - 33RS-r
One channel receiver 12/24V, 433,92MHz
33RS is the new one channel receiver, in standard codification for 12V or 24 V. It is easy to be installed and controls high RF frequencies.
Main functions
- Absorption 10mA max. at stand-by and 25mA on relay activation
- Operation selectable PUSH-ON or PUSH ON-OFF jumpers
- Power supply 12-24V AC/DC in different models.
- Operating frequency 433,92 MHz
- Range from 30 to 100 meters depends on the environment
- Sizes: 82X59X30mm
- Working temperatures: -15οC to +60ο C
