3050 24VDC

3050 24VDC

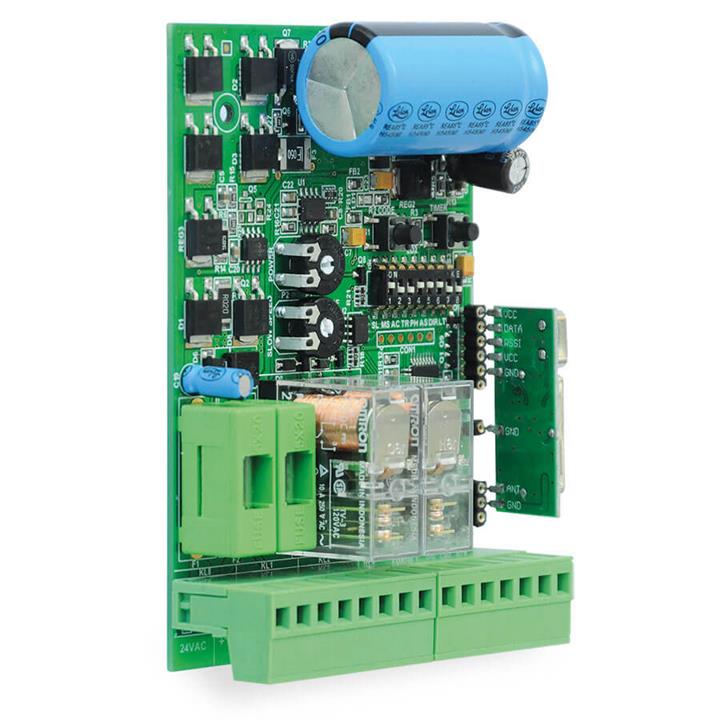

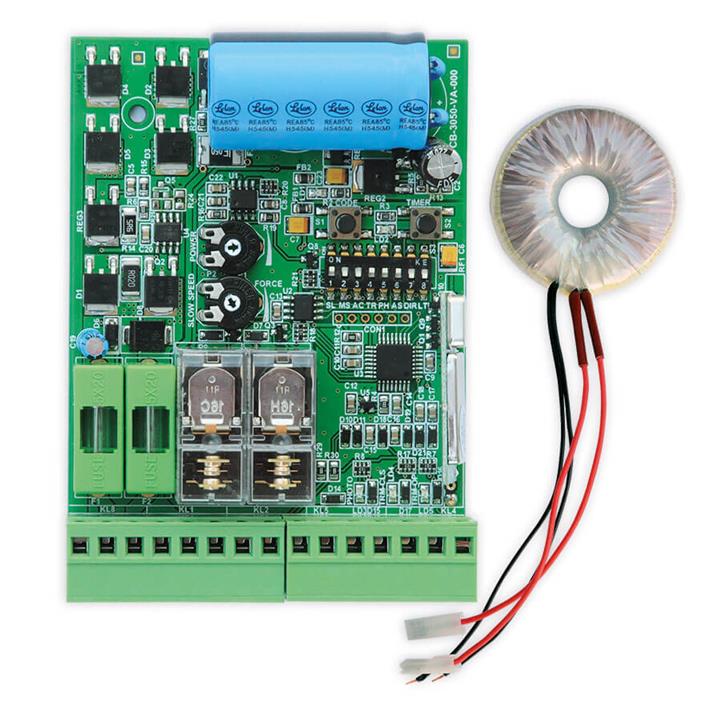

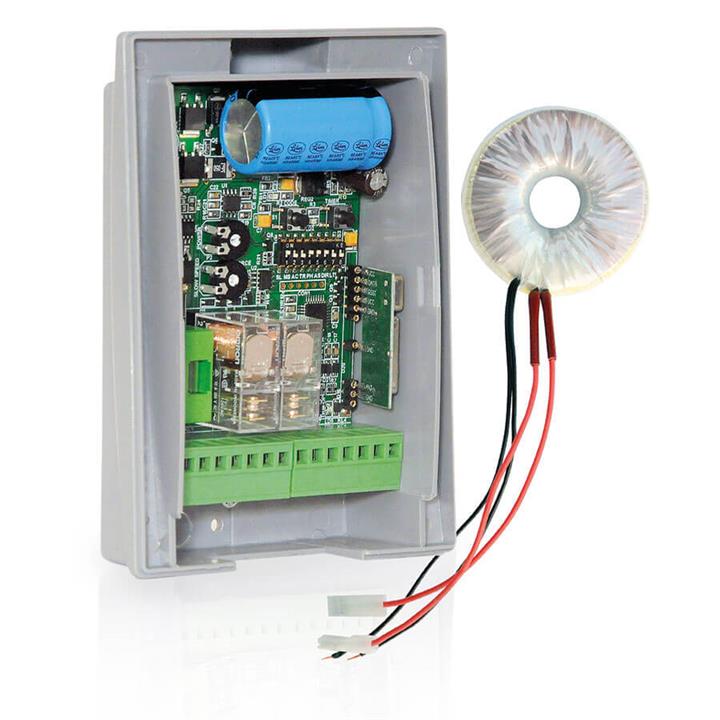

Control panel for 24VDC sliding motors up to 200 watt

Product description
Technical leaflets

3050 is the new multi- function control panel for 24VDC motors up to 200 watt. Suitable for sliding and swing gates, overhead doors and barriers. Advanced in design and specifications, manufactured with state-of the art raw materials. Embedded functions provide a quick and easy installation. 300 transmitters can be stored.

Main functions

Provides different leds that work based on each different function of the receiver
Separate limit switch inputs for the motor
No sparking relays for longer life time of relays
External button: N.O contact for only opening
Photocell contact input at 24VAC/1,1VA
Amperometric sensitivity
Adjustable electronic motor torque
Automatic motor’s reversion
Output for flashing light 230VAC/25W standard with or without intermittence
Adjustable automatic closing
Motor operating time is programmable from 1 to 180 seconds
Provides filters for the external noises
Working temperatures: -20oC to + 60oC

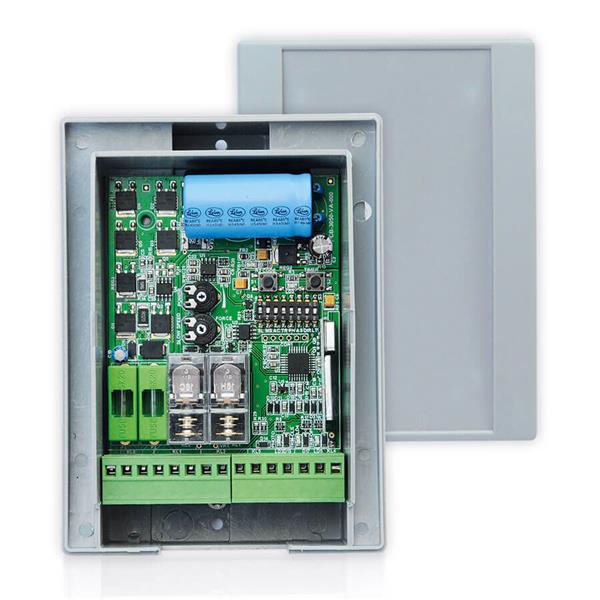

Size: 111mm X 82mm X 30mm including ABS housing

Available codes

Product name	Codification	Compatible Transmitters
3050 24VDC	fixed code 433.92MHz	PS-46T
3050R 24VDC	PN rolling code 433.92MHz	PN-46T

Compatible transmitters

PN-46T

PS-46T

3050 data.pdf

3050 tech.pdf

CE 3050.pdf

Accessories

Enrich the product with the appropriate accessories, giving it more functionality and features.

FA-15

Blinker light

Details

IR-30

Wired photocell up to 10 meters

Details

PB-1500

Reflective type photocell up to 15 meters

Details
