3029

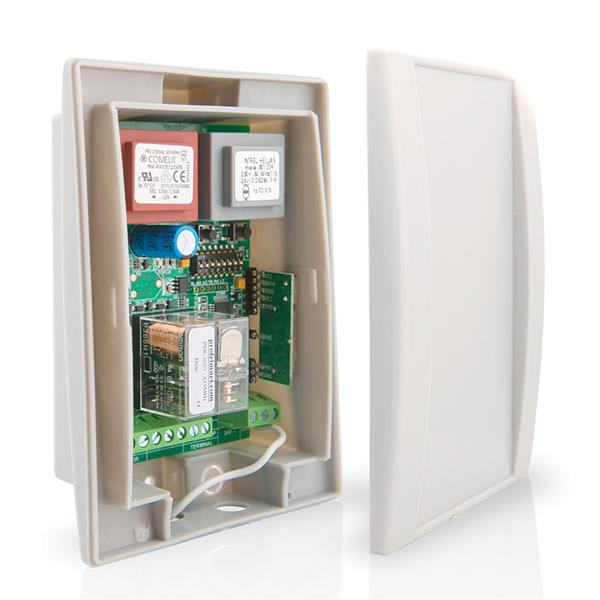

Control panel for rolling shutters, 433,92MHz
3029 is new multi-function rolling shutter control panel 110/230VAC, suitable for AC motor up to 1200 watt. Retrofit and new embedded functions. 300 transmitters can be stored.
Main functions
- Provides different leds that indicate each different function of the receiver
- External button N.O contact
- Photocell contact input at 24VAC/1,1VA
- Output for flashing light 230VAC/25W standard with or without intermittence
- Adjustable working time from 1-180S.
- Provides filters for the external noises
- Auto-close feature Smart auto-close timer
- Working temperatures: -20oC - 60oC
- Size 111mm X 82mm X 30mm including ABS housing
Available codes
| Product name | Codification | Compatible Transmitters |
| PS3029 | fixed 433.92MHz | PS-46T |
| PN3029 | pn rolling 433.92MHz | PN-46T |
