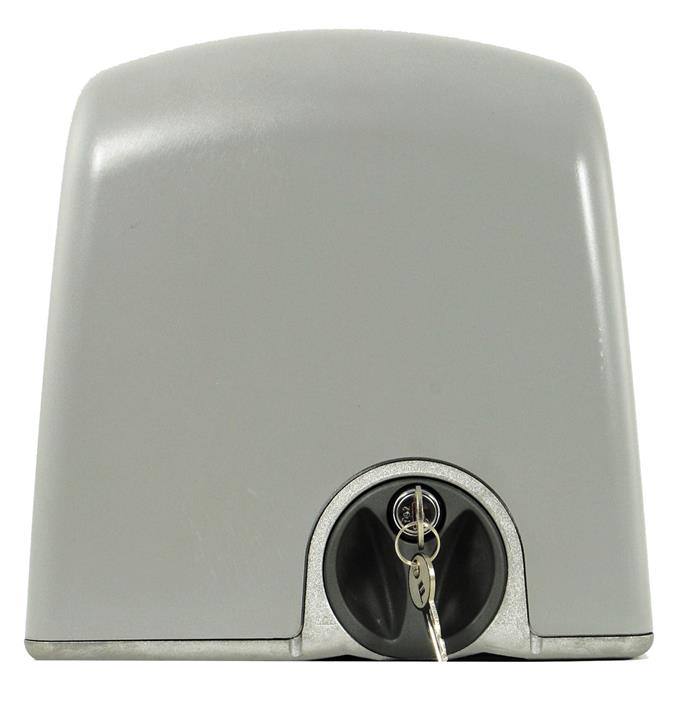

Sliding door motor for doors up to 500 kg, prewired Profelmnet control panel

DIAS 5,  sliding gate automation. It is powerful, quiet, with a compact design. Perfect for either wrought iron or solid timber sliding gates, with maximum door weight up to 500 kg. Embedded the pre-wired Profelmnet's control panel, covering all requirements for the best function of the motor.


Main motor technical data

  • Maximum door weight is 500 kg
  • Motor power   230V/250W
  • Opening time  10meters / minute
  • Motor rpm  1400
  • Protection rating  IP44
  • Weight 8 kg

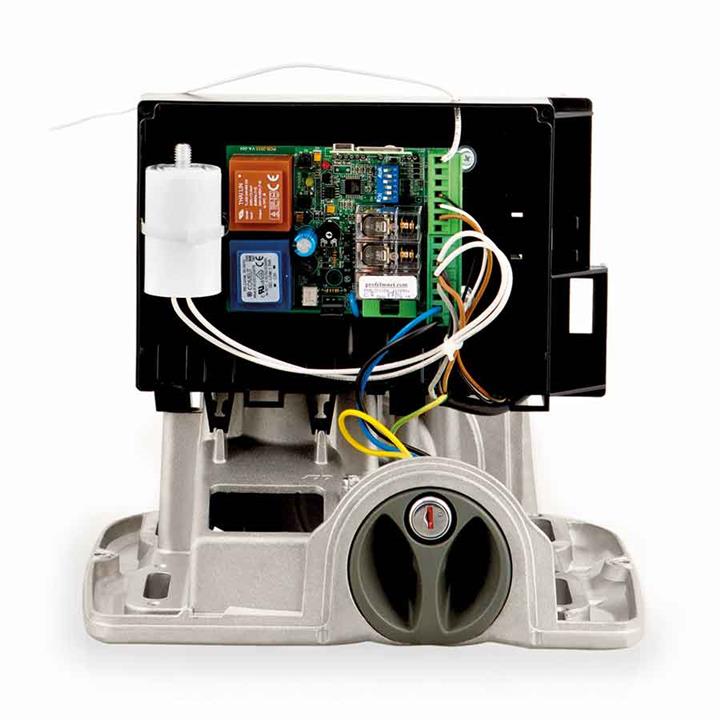

Main control panel functions

  • Separate limit switch inputs for the motor
  • External button: N.O contact
  • Photocell contact input at 24VAC/1,1VA
  • Adjustable electronic motor torque
  • Output for flashing light 230VAC/25W standard with or without intermittence
  • Auto-close feature: Smart auto-close timer
  • Motor operating time: Programmable from 1 to 180 seconds
  • After a  power outage, the  control panel  checks  the door if it is close or open and it closes it automatically
  • Working temperatures: -20 to +60 Celsius

Enrich the product with the appropriate accessories, giving it more functionality and features.
