4033 glass

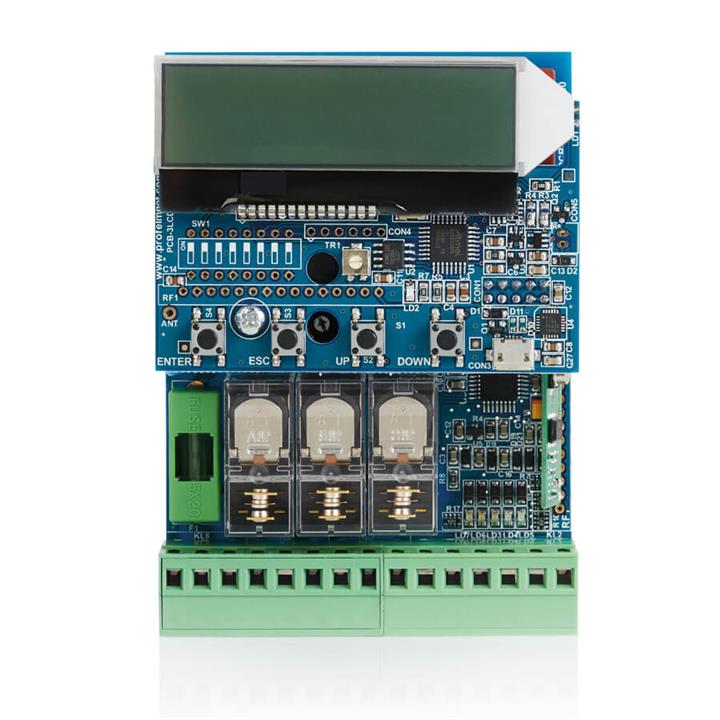

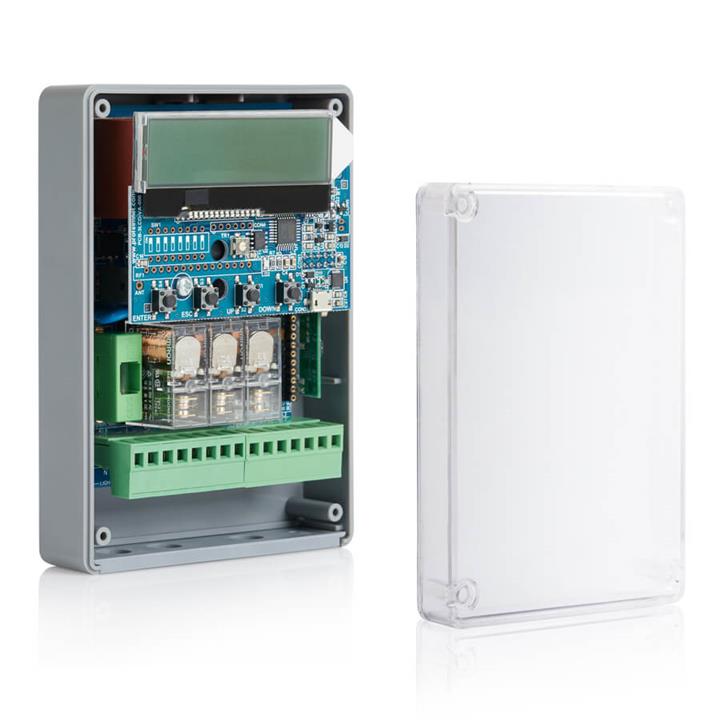

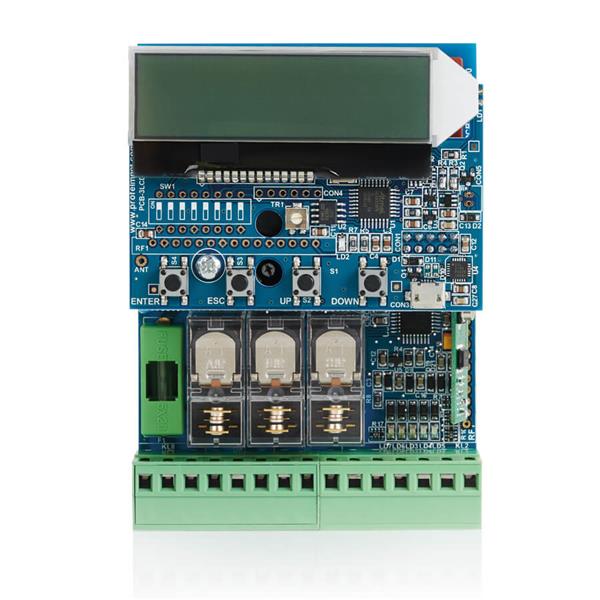

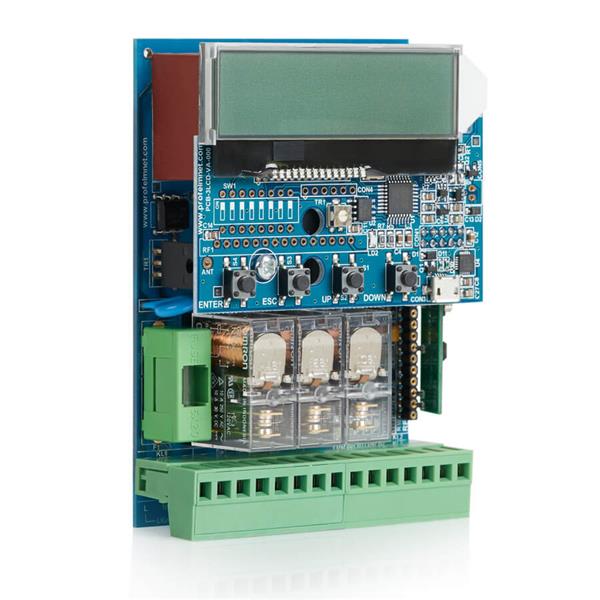

LCD control panel for sliding gate and rolling shutter up to 1200 watt

4033 is LCD screen display control panel 110/230VAC suitable for sliding  gate and rolling shutter motor up to 1200 watt.  A new generation automation that combines small and easy-to-use size for each type of installation with advanced software of countless capabilities. The LCD screen display provides fault diagnosis, easy way of programming and plenty of functions. Quality, flexibility use, durability.


Main functions

  • Power supply 230 VAC / 110 VAC
  • Power handlling up to 2400 watt
  • Memory up to 300 transmitters
  • Adjustable electronic motor torque
  • Adjustable decelaration
  • Pedestrial function
  • Adjustable auto close
  • Soft start and stop
  • Output for soft-edge
  • Output for photocells
  • Motor break
  • Adjustable codification
  • Access control possibility
  • Input for electric lock
  • Working temperatures: -20 to +60 Celsius
  •  Size: 119Χ95Χ30mm including ABS housing

Available codes

Product name    Codification  Compatible Transmitters
PS4033       fixed 433.92MHz  PS-46T
PN4033 pn rolling 433.92MHz PN-46T



Enrich the product with the appropriate accessories, giving it more functionality and features.
